Android Toggle Button Example

The Android Toggle Button allows the user to switch between two states, ON and OFF. Ideal if you want your app to check or uncheck the on/off states of Sound, Bluetooth, WiFi, Location etc.

Android Toggle Button Example:

For this example all that's needed is 2 toggle buttons and a regular button in the layout.

File: content_main.xml

<?xml version="1.0" encoding="utf-8"?> <RelativeLayout android:id="@+id/content_main" xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:paddingBottom="@dimen/activity_vertical_margin" android:paddingLeft="@dimen/activity_horizontal_margin" android:paddingRight="@dimen/activity_horizontal_margin" android:paddingTop="@dimen/activity_vertical_margin" app:layout_behavior="@string/appbar_scrolling_view_behavior" tools:context="android.google.com.uiexample.MainActivity"> <TextView android:id="@+id/textView" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_alignParentTop="true" android:layout_centerHorizontal="true" android:layout_marginTop="40dp" android:text="Toggle Button Example" android:textColor="?android:attr/editTextColor" android:textSize="24sp" android:textStyle="normal|bold"/> <ToggleButton android:id="@+id/toggleButton1" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_alignStart="@+id/textView" android:layout_below="@+id/textView" android:layout_marginTop="50dp"/> <ToggleButton android:id="@+id/toggleButton2" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_alignEnd="@+id/textView" android:layout_alignBottom="@+id/toggleButton1" android:checked="true"/> <Button android:id="@+id/button" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_below="@+id/toggleButton1" android:layout_centerHorizontal="true" android:layout_marginTop="125dp" android:text="PRESS TO CHECK"/> </RelativeLayout>

Java Activity

File: MainActivity.java

import android.os.Bundle; import android.support.v7.app.AppCompatActivity; import android.view.View; import android.widget.Button; import android.widget.CompoundButton; import android.widget.Toast; import android.widget.ToggleButton; public class MainActivity extends AppCompatActivity { private ToggleButton toggleButton1, toggleButton2; private Button buttonCheck; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.content_main); getWidgets(); } private void getWidgets() { //Getting the ToggleButtons and Button instance from the layout xml file toggleButton1 = (ToggleButton) findViewById(R.id.toggleButton1); toggleButton2 = (ToggleButton) findViewById(R.id.toggleButton2); buttonCheck = (Button) findViewById(R.id.button); //Performing action on toggle button 1 click toggleButton1.setOnCheckedChangeListener(new CompoundButton.OnCheckedChangeListener() { public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) { if (isChecked) { // The toggle is enabled Toast.makeText(MainActivity.this, "toggleButton1 is checked", Toast.LENGTH_SHORT).show(); } else { // The toggle is disabled Toast.makeText(MainActivity.this, "toggleButton1 is disabled", Toast.LENGTH_SHORT).show(); } } }); //Performing action on toggle button 2 click toggleButton2.setOnCheckedChangeListener(new CompoundButton.OnCheckedChangeListener() { public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) { if (isChecked) { // The toggle is enabled Toast.makeText(MainActivity.this, "toggleButton2 is checked", Toast.LENGTH_SHORT).show(); } else { // The toggle is disabled Toast.makeText(MainActivity.this, "toggleButton2 is disabled", Toast.LENGTH_SHORT).show(); } } }); //Performing action on button click buttonCheck.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View view) { // retreives either ON or OFF text from togglebuttons String result = "ToggleButton1 : " + toggleButton1.getText() + "\nToggleButton2 : " + toggleButton2.getText(); //Displaying the result string in a toast Toast.makeText(getApplicationContext(), result, Toast.LENGTH_LONG).show(); } }); } }

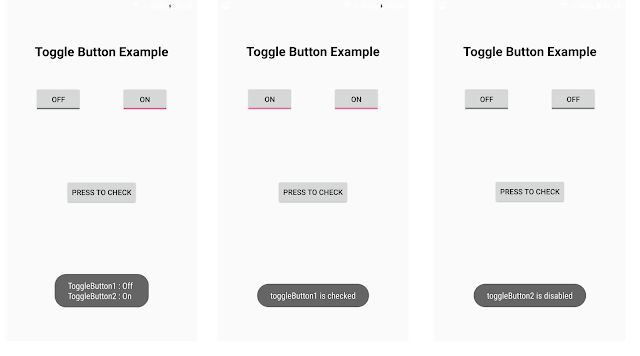

Result:
